Remote maintenance

AMS-PRO-20 / AMS-PRO-40 / AMS-PRO-60

Our big ones


Work like the pros. This machine is also used in multi-shift operation. Automated covering of the milling materials, automatic and self-sufficient processing of milling jobs. These are all advantages that allow high quantities with maximum profitability.

There are also demonstration machines or used machines for sale again and again.

Ask us about our current offers!


Get advice now



The high-end product for automated milling is available in 3 versions! Thanks to the new box solution, the machine can be loaded with either 20, 40 or 60 material boxes at the same time. These are processed automatically.



A machine to support medium and large companies.

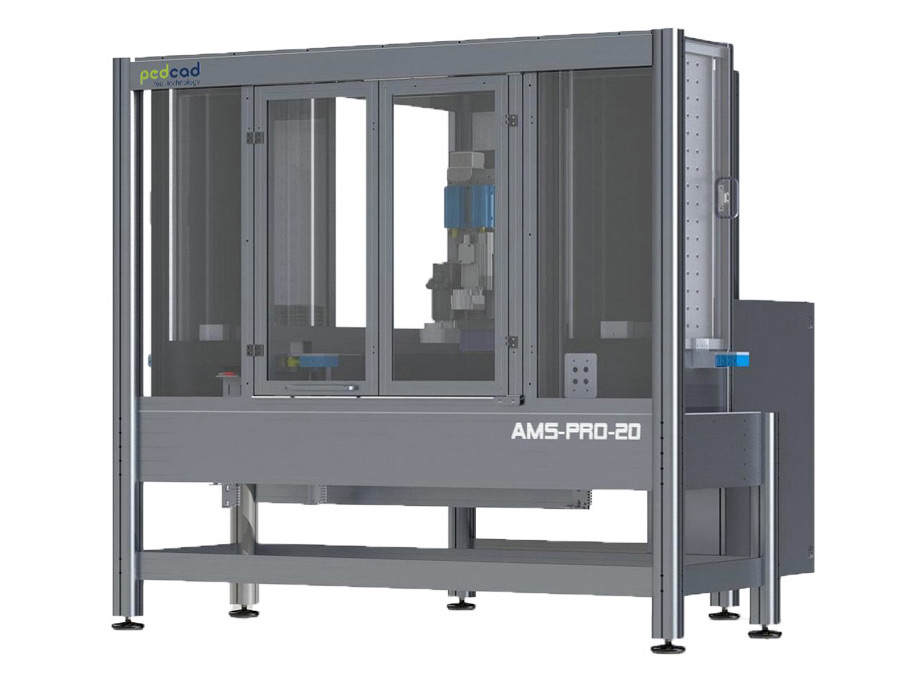

AMS-PRO 20

Milling machines for up to 20 pairs of insoles



Processing time per pair:

Ø 11 minutes

AMS-PRO 40

Milling machines for up to 40 pairs of insoles



Processing time per pair:

Ø 11 minutes

AMS-PRO 60

Milling machines for up to 60 pairs of insoles



Processing time per pair:

Ø 11 minutes

  • Characteristics:

    • milling in pairs
    • milling of top-and-bottom-side
    • pneumatic insole fixation via box solution
    • automated loading and unloading station with barcode milling file solution
    • material thickness up to 40mm
    • insole sizes from 20 to 50
    • box measurements:
    • approx. 400 x 320 x 50 mm
    • setup and installation on site possible

  • Advantages:

    • Minor personnel expentitures due to automated production
    • Streamlining of your production processes
    • Short training period
    • No expert staff necessary
    • Specialised qualification in all sections




Technical data:

AC 400 V, 50/60 Hz

Servo motors

High frequency spindle

Dimensions:

Variable according to model and design.

Further information on request.

Weight:

Variable according to model and design.

Further information on request.


Milling:

Milling in pairs:

Yes



Shoe size:

20 - 50

Milling of top and underside:

Yes



Insole fixing:

Stenter box

Automated loading and unloading station:

Yes


Processing time:

(varies depending on the milling spacing distance and shoe size)



Top Side:

ø 6 - 14 Min./Paar

Underside:

ø 3 - 6 Min./Paar


Material:

Thickness:

50 mm



Material:

Single layer material

Multi-layer material

Inlay blanks

Number of Boxes:

20 - 60 Boxes, depending on the model and version


Our partner for CNC based milling machines - imes-icore GmbH
