Pressure measuring platform

The pressure measurement platform is the measuring method that generates the highest amount of data.

Measurements generated with the pressure measurement platform offer the user the broadest data spectrum and with that facilitate a more precise diagnosis and a more individualized treatment plan. Digital, dynamic measurement results are obtained that offer information about the gait pattern as well as weight and pressure distribution. With this measuring method, the foot is being projected in its natural function - movement.


Customer data, insole types and materials are managed through “pressureped”. This facilitates the diagnosis and the management of customer data. And order entry is quick and easy with this system. Our “pressureped” software is easy to use - the user does not need to be an orthopedic specialist.

Description:

  • Digital static and dynamic measurement data
  • Measuring device with high informative value with respect to hydrograph, weight and pressure distribution
  • Gives information on rolling behaviour of the foot
  • Can be used mobile or fixed in a measuring room

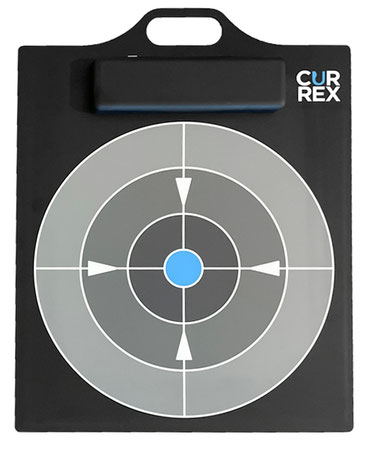

footplate basic

footplate pro


  • Measuring area: 400 x 400 mm
  • Number of sensors: 2704
  • Sensors per m2: 1.7
  • Frequency:max. 100 Hz
  • Sensor type: capacitive
  • Weight: 2.3 kg
  • Dimesnions: 565 x 440 x 27 mm
  • Measuring area: 490 x 490 mm
  • Number of sensors: 4096
  • Sensors per m2: 1.7
  • Frequency:max. 200 Hz
  • Sensor type: capacitive
  • Weight: 2.3 kg
  • Dimensions: 635 x 510 x 27mm

Additional:

  • Automatic left-right detection
  • Step-by-step presentation

pedcad - Currex - Monolith

Monolith aluminium frame construction with printed pedcad design

  • Color: white
  • footplate plate pro with 4096 capacitive sensors
  • Frequency 100 Hz
  • Modern PC in microformat and 22” HD touchscreen monitor



Software:

  • MOTIONQUEST NEO analysis software including shoe database, customer database and multimedia modules
  • Additional modules and features at additional cost
  • All data updates are via Internet (WLAN required)
  • Dimensions: 1300 x 1200 x 510 mm




measurement examples

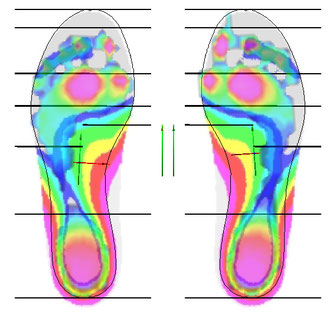

example of measurement

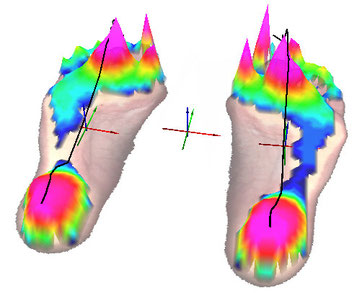

2d-measurement and pressure measurement with gaitline shown overlapped


2d-measurement and pressure measurement with gaitline shown overlapped in 3d-picture


All measuring devices are delivered with our easyped software. This software is configured for the respective measuring system and enables you to upload your measurements either to your own insole designing software and produce the insoles yourself, or to send the measurements to our central manufacturing facility - so that we produce the insoles for you as part of our »Order-milling service. Additionally, you can also order our »valinos® with this program.

The different measuring systems can, of course, be combined with each other. In our insole design software „pedcad insole-designer“, several measurements can be superimposed to take advantage of the full potential of the different types of measuring.
