3D scanner ped3D Basic

Laser foot scanner ped3D Basic - optionally with pedmodeler


ped3D scanner

Laser foot scanner ped3D Basic


The ped3D Basic Scanner measures the shape of the soles of the feet and provides the 3D data obtained in digital form. This 3D scanner is especially designed for the production of Insoles helpful for diabetics and rheumatics. Step foams, insoles and feet can be digitized with this measuring device.


learn more

... optional with pedmodeler


Modeled scans of the feet are possible with the optionally available extension to the pedmodeler.


learn more

ped3D Basic

Our ped3D Basic is your professional introduction to digital foot measurement. With this 3D scanner you can create three-dimensional, static, digital measurements and process them directly in the pedoffice Lite software supplied.

Optionally, we also offer you an upgrade to our powerful pedoffice full version. The full version of the ⇢ pedoffice software is our integrated management software for processing customer data, insert types and materials. All measurement data obtained by you with the 3D scanner can be processed here intuitively. In this way you increase your presence and competence with the customer and receive a significant time advantage in production.

Download
Info ped3D Basic
Info_ped3D_Basic_EN.pdf
Adobe Acrobat Document 639.8 KB
Download

  • Advantages:

    • inexpensive entry-level device
    • mobile use and transportable
    • compact dimensions
    • with just a few clicks from scan to insert
    • easy handling
    • creates 2D and 3D scans
    • Heel laser solder
    • no darkroom necessary
    • can be upgraded to a pedmodeler

    • ... and of course all of our measuring systems can also be combined with one another.

      In our insole construction software InsoleDesigner Several measurements can even be superimposed in order to use the optimum of all measurement types.

  • Characteristics:

    Measurement:

    • static measurement
    • 3D scan of the sole of the foot
    • step foam
    • insert
    • 2D scan in grayscale



    Use:

    • mobile or permanently installed



    Report:

    • PDF report
    • Color representation of the foot sole measurement
    • optional 1: 1 view of the foot sole measurement true to scale export for digital processing



    Software:

    • pedoffice or easyped



    System requirements PC:

    • Windows 11 version 23H2 and newer
    • CPU: i5-6200U
    • RAM: 8GB



    Measurement data:

    • STL / WRL
    • JPG



    Scanning options:

    • foot
    • step foam
    • Plaster cast
    • Deposits



    Dimensions:

    • 490 x 230 x 70 mm



    Weight:

    • 4.7 kg



    Scan area:

    • 330 x 140 x 80 mm



    Speed:

    • 2.9 sec.



    Accuracy:

    • +/- 1 mm



    Power connection:

    • power cord 120-240V; 50 / 60Hz worldwide



    Including:

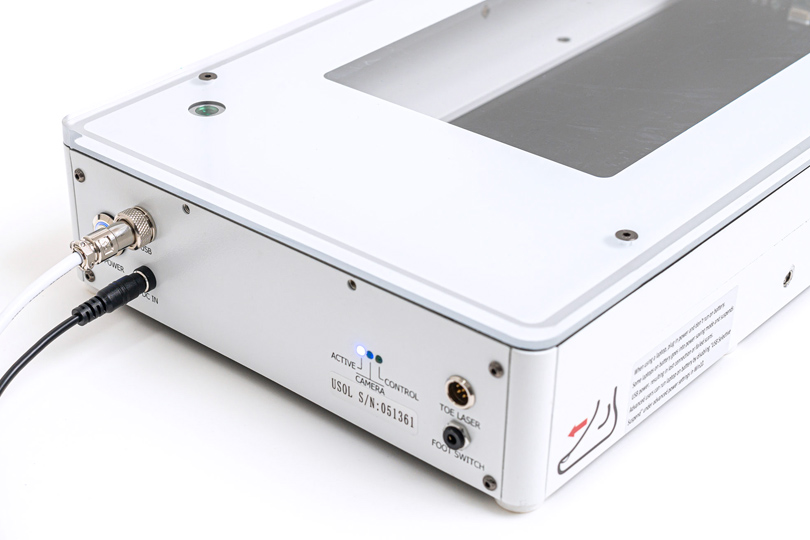

    • Power supply, USB cable, foot switch, heel camera (foldable with laser), scan mode with exposure correction and pedoffice Lite software


  • Similar to picture

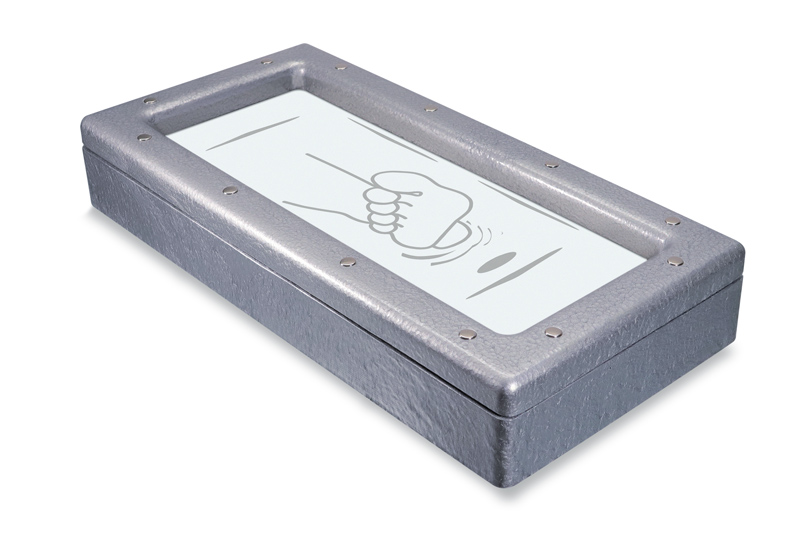

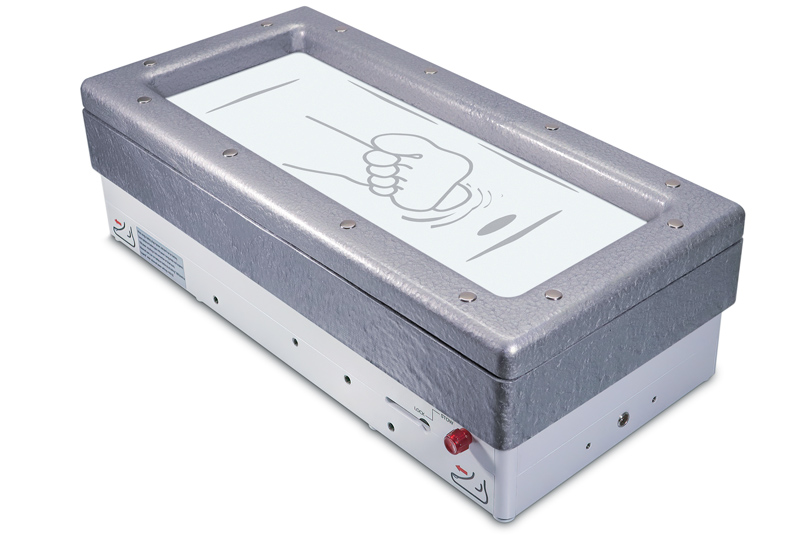

pedmodeler attachment for 3D scanner ped3D Basic

Modeling attachment "pedmodeler" for more precise measurements. The attachment is available as a supplement for our ped3D scanner Basic or as a complete package including the 3D scanner ped3D Basic.

The scope of delivery includes a hand pump for filling the pedmodeler with air. This allows the measurement result to be improved even further.

Dimensions (attachment only): 240 x 500 x 85 mm

Weight (attachment only): 2.5 kg

Dimensions (scanner incl. attachment): 240 x 500 x 155 mm

Weight (scanner incl. attachment only): 7.2 kg
