3D scanner ped3D Full Foot

Laser foot scanner ped3D Full Foot


Laser foot scanner ped3D Full Foot


Our laser scanner ped3D Full Foot enables not only the digitization of the entire foot but also the management of measurement data via our ⇢ pedoffice software. This is especially true for last. You can digitize and archive existing strips.


learn more

Time-saving and efficient

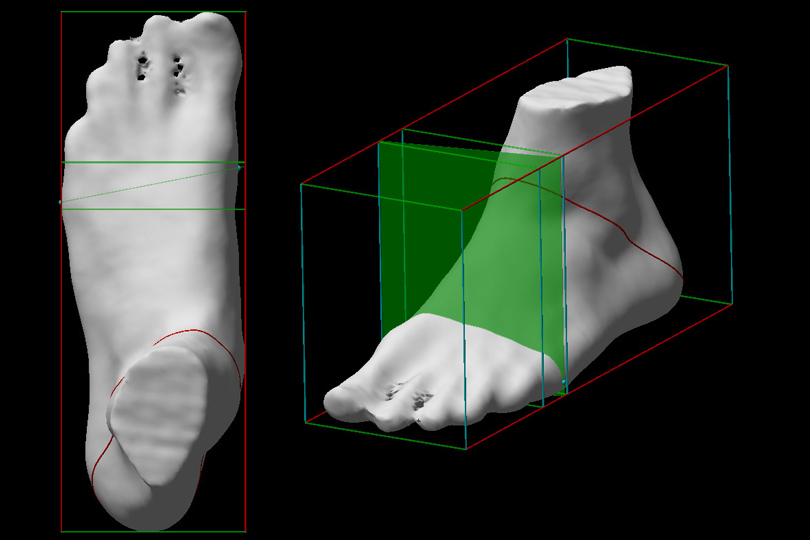

When creating a new foot measurement, this measurement is compared with the existing lasts using the ⇢ pedoffice software. and the most suitable one is selected. In this way, you can select the correct last in a targeted manner and start your actual work, the custom-made shoe production.


learn more
Anker von 3D FULL FOOT hier bearbeiten
Only Desktop + Tablet

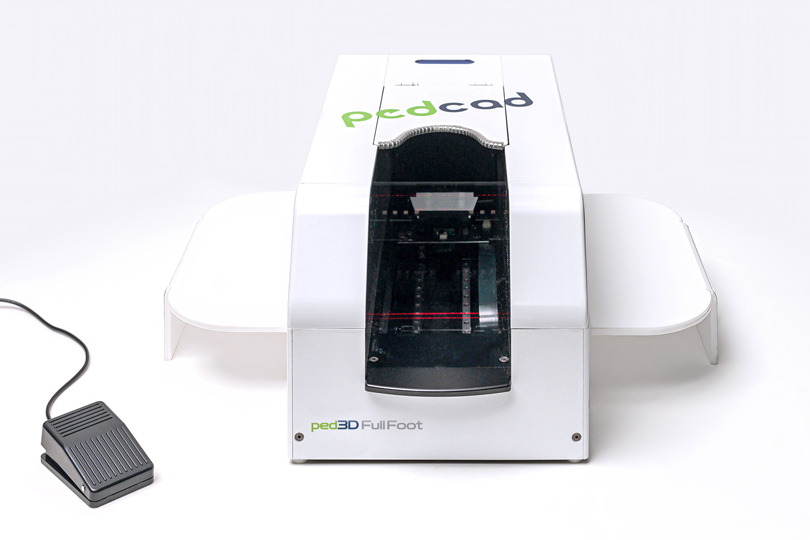

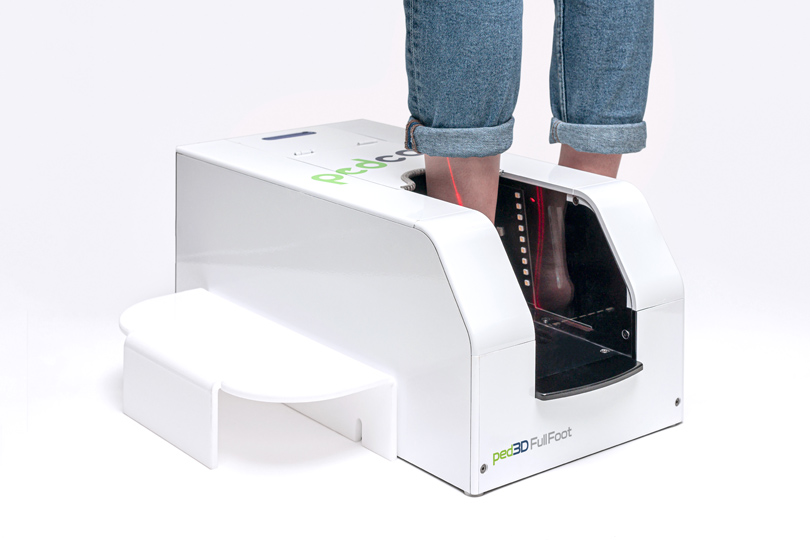

ped3D Full Foot
incl. pedoffice

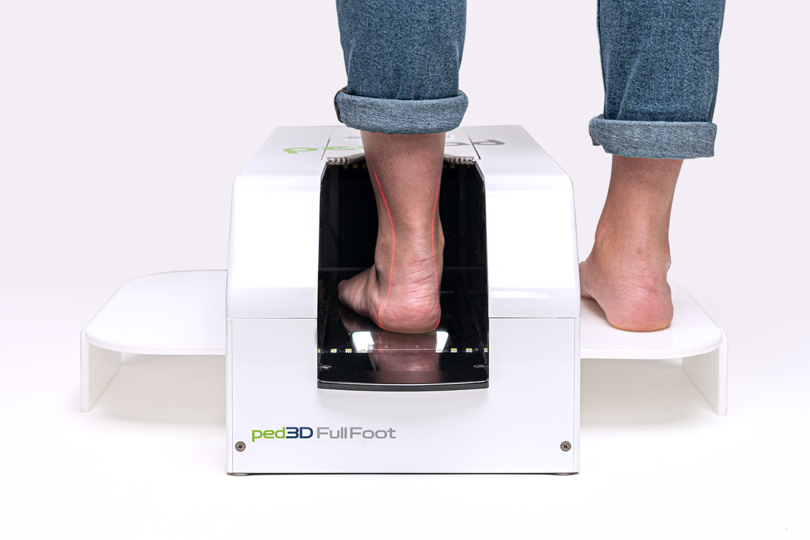

Our ped3D Full Foot offers you highly precise options in the field of digital foot measurement. With this 3D scanner you can create three-dimensional, static, digital measurements and process them directly in the pedoffice Lite software supplied.

Optionally, we also offer you an upgrade to our powerful pedoffice full version. The full version of the ⇢ pedoffice software is our integrated management software for processing customer data, insert types and materials. All measurement data obtained by you with the 3D scanner can be processed here intuitively. In this way you increase your presence and competence with the customer and receive a significant time advantage in production.

  • Advantages:

    • inexpensive entry-level variant
    • mobile use and transportable
    • also suitable for fixed installation
    • compact dimensions
    • easy handling
    • creates 2D and 3D scans
    • STL output data

    • ... and of course all of our measuring systems can also be combined with one another.

      In our insole construction software ⇢ InsoleDesigner Several measurements can even be superimposed in order to use the optimum of all measurement types.

  • Features:

    Measurement:

    • static measurement
    • 3D scan of the whole foot

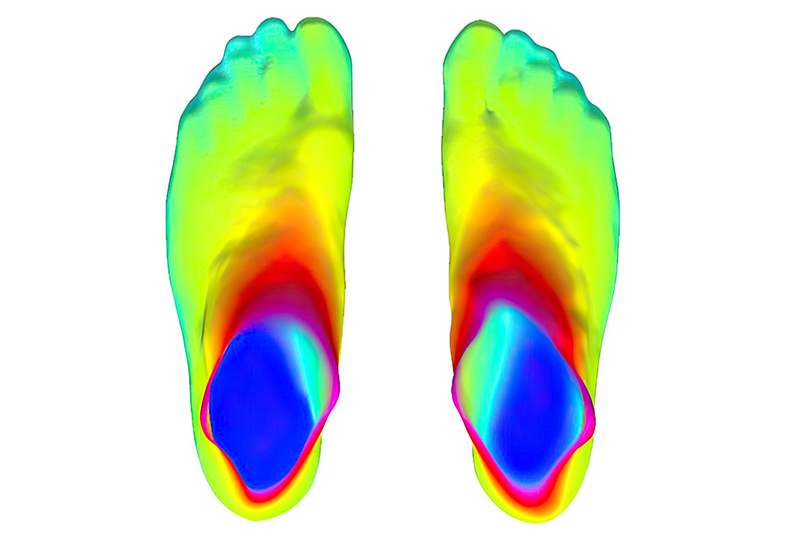

    • 2D scan of the sole of the foot in grayscale



    Application:

    • mobile or fixed



    Report:

    • PDF report

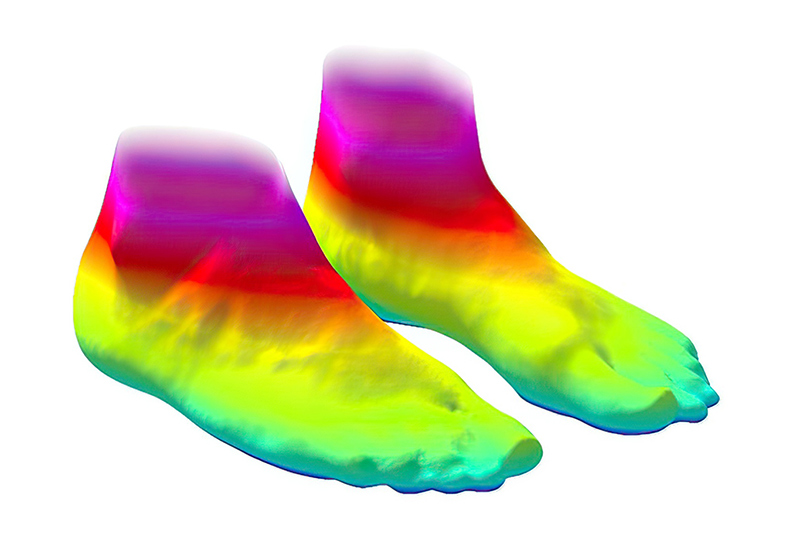

    • color representation of the foot measurement
    • optional 1: 1 view of the foot measurement true-to-scale export for further digital processing



    Software:

    • pedoffice or pedoffice light



    System requirements PC:

    • Windows 10, 11
    • CPU: i5-6200U
    • RAM: 8GB



    Measurement data:

    • STL / WRL
    • JPG



    Scanning capabilities:

    • Foot
    • Bars



    Dimensions:

    • 520 x 270 x 220 mm



    Weight:

    • 10 kg



    Measurement volume:

    • 330 x 130 x 120 mm



    Speed:

    • 3.2 sec.



    Accuracy:

    • +/- 1 mm



    Power supply:

    • power cord 120-240V; 50/60Hz worldwide



    Included:

    • Power adapter, USB cable, foot switch, step elevation, scan mode with exposure correction and pedoffice Lite software.
Download
Info ped3D Full Foot
Info_ped3D_Full_Foot_EN.pdf
Adobe Acrobat Document 573.7 KB
Download

Only Desktop + Tablet

Need more information?

Even more information is also available in our news article:
⇢ "Orthopedic foot scanners for more comfort and patient satisfaction"


Request advice

Only Desktop + Tablet

Video:


3D-Scanner ped3D Full Foot on YouTube
